Плиты перекрытий многопустотные
ГОСТ 9561-91
Панели пустотного настила предназначены для устройства междуэтажных перекрытий и покрытий при проектировании и строительстве жилых и общественных зданий.
Плиты изготавливаются по серии: 1.141-1, в 60, 63; 1.241-1, в 27,39, из тяжелого бетона, открытые торцы усиливаются в заводских условиях заделкой бетонными вкладышами. Несущая способность плит 600, 800, 1250 кг/м2.
Возможно изготовление индивидуальных ПК по представленным чертежам.
|
Наименование |
Марка изделия |
Объем, м3 |

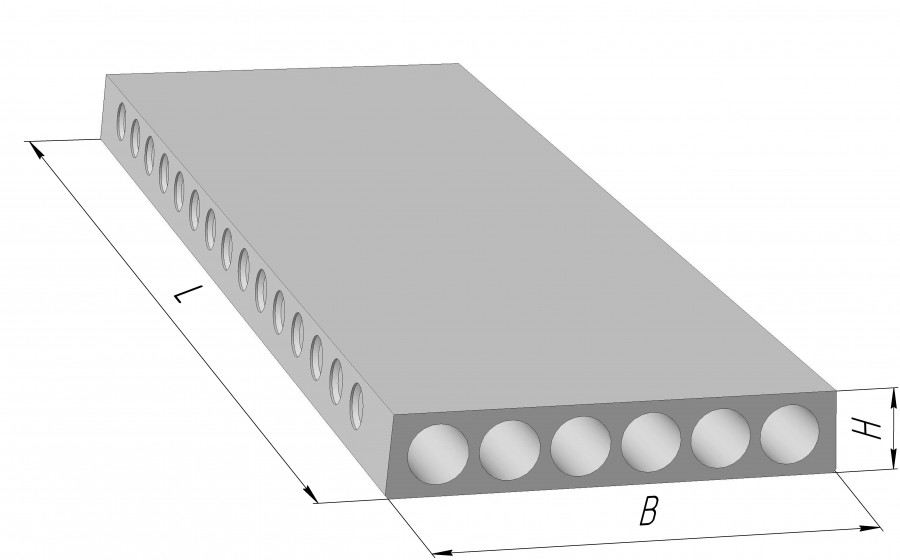

Длина, (L),мм |
Ширина, (B),мм |
Высота, (H),мм |
Вес, кг |
|
серия 1.141-1 в.60 с доп. Н Ж 3-467 |
1 ПК 22-8-8 |
0,379 |
2180 |
790 |
220 |
495 |
|
24-8-8 |
0,414 |
2380 |
790 |
220 |
550 |
|
|
27-8-8 |
0,466 |
2680 |
790 |
220 |
635 |
|
|
30-8-8 |
0,518 |
2980 |
790 |
220 |
720 |
|
|
31-8-8 |
0,535 |
3080 |
790 |
220 |
750 |
|
|
32-8-8 |
0,553 |
3180 |
790 |
220 |
770 |
|
|
34-8-8 |
0,587 |
3380 |
790 |
220 |
815 |
|
|
36-8-8 |
0,622 |
3580 |
790 |
220 |
865 |
|
|
37-8-8 |
0,64 |
3680 |
790 |
220 |
885 |
|
|
38-8-8 |
0,657 |
3780 |
790 |
220 |
910 |
|
|
39-8-8 |
0,674 |
3880 |
790 |
220 |
930 |
|
|
40-8-8 |
0,692 |
3980 |
790 |
220 |
950 |
|
|
42-8-8 |
0,726 |
4180 |
790 |
220 |
1000 |
|
|
45-8-8 |
0,778 |
4480 |
790 |
220 |
1070 |
|
|
46-8-8 |
0,796 |
4580 |
790 |
220 |
1080 |
|
|
48-8-8 |
0,83 |
4780 |
790 |
220 |
1125 |
|
|
серия 1.141-1 в.63 с доп. Н Ж 3-466 |
49-8-8 |
0,848 |
4880 |
790 |
220 |
1150 |
|
50-8-8 |
0,866 |
4980 |
790 |
220 |
1175 |
|
|
51-8-8 |
0,883 |
5080 |
790 |
220 |
1200 |
|
|
54-8-8 |
0,935 |
5380 |
790 |
220 |
1275 |
|
|
56-8-8 |
0,97 |
5580 |
790 |
220 |
1320 |
|
|
57-8-8 |
0,987 |
5680 |
790 |
220 |
1340 |
|
|
58-8-8 |
1,005 |
5780 |
790 |
220 |
1360 |
|
|
60-8-8 |
1,039 |
5980 |
790 |
220 |
1400 |
|
|
62-8-8 |
1,074 |
6180 |
790 |
220 |
1450 |
|
|
63-8-8 |
1,091 |
6280 |
790 |
220 |
1475 |
|
|
c.1.241-1,в.27 с доп. Н Ж 3-474 |
64-8-8 |
1,109 |
6380 |
790 |
220 |
1505 |
|
65-8-8 |
1,126 |
6480 |
790 |
220 |
1525 |
|
|
66-8-8 |
1,144 |
6580 |
790 |
220 |
1550 |
|
|
68-8-8 |
1,178 |
6780 |
790 |
220 |
1595 |
|
|
69-8-8 |
1,196 |
6880 |
790 |
220 |
1620 |
|
|
70-8-8 |
1,213 |
6980 |
790 |
220 |
1640 |
|
|
71-8-8 |
1,231 |
7080 |
790 |
220 |
1665 |
|
|
72-8-8 |
1,248 |
7180 |
790 |
220 |
1685 |
|
|
с. 1.141-1, в. 60 с доп. НК - 3 - 18 |
1 ПК 20-10-8 |
0,431 |
1980 |
990 |
220 |
605 |
|
21-10-8 |
0,453 |
2080 |
990 |
220 |
630 |
|
|
24-10-8 |
0,518 |
2380 |
990 |
220 |
712 |
|
|
27-10-8 |
0,584 |
2680 |
990 |
220 |
795 |
|
|
28-10-8 |
0,605 |
2780 |
990 |
220 |
825 |
|
|
30-10-8 |
0,65 |
2980 |
990 |
220 |
882 |
|
|
31-10-8 |
0,671 |
3080 |
990 |
220 |
910 |
|
|
32-10-8 |
0,692 |
3180 |
990 |
220 |
935 |
|
|
33-10-8 |
0,714 |
3280 |
990 |
220 |
975 |
|
|
34-10-8 |
0,736 |
3380 |
990 |
220 |
1015 |
|
|
35-10-8 |
0,76 |
3480 |
990 |
220 |
1030 |
|
|
36-10-8 |
0,78 |
3580 |
990 |
220 |
1055 |
|
|
37-10-8 |
0,802 |
3680 |
990 |
220 |
1100 |
|
|
38-10-8 |
0,823 |
3780 |
990 |
220 |
1125 |
|
|
39-10-8 |
0,845 |
3880 |
990 |
220 |
1140 |
|
|
1ПК40-10-8 |
0,867 |
3980 |
990 |
220 |
1165 |
|
|
42-10-8 |
0,91 |
4180 |
990 |
220 |
1175 |
|
|
43-10-8 |
0,932 |
4280 |
990 |
220 |
1210 |
|
|
45-10-8 |
0,976 |
4480 |
990 |
220 |
1275 |
|
|
46-10-8 |
0,998 |
4580 |
990 |
220 |
1310 |
|
|
47-10-8 |
1,02 |
4680 |
990 |
220 |
1350 |
|
|
48-10-8 |
1,04 |
4780 |
990 |
220 |
1375 |
|
|
серия 1.141-1 с. 1.141-1, в. 63 |
1ПК49-10-8 |
1,063 |
4880 |
990 |
220 |
1410 |
|
50-10-8 |
1,085 |
4980 |
990 |
220 |
1445 |
|
|
51-10-8 |
1,106 |
5080 |
990 |
220 |
1475 |
|
|
52-10-8 |
1,128 |
5180 |
990 |
220 |
1505 |
|
|
53-10-8 |
1,15 |
5280 |
990 |
220 |
1545 |
|
|
54-10-8 |
1,172 |
5380 |
990 |
220 |
1575 |
|
|
55-10-8 |
1,193 |
5480 |
990 |
220 |
1590 |
|
|
56-10-8 |
1,215 |
5580 |
990 |
220 |
1620 |
|
|
57-10-8 |
1,237 |
5680 |
990 |
220 |
1650 |
|
|
58-10-8 |
1,259 |
5780 |
990 |
220 |
1680 |
|
|
59-10-8 |
1,281 |
5880 |
990 |
220 |
1705 |
|
|
60-10-8 |
1,302 |
5980 |
990 |
220 |
1725 |
|
|
61-10-8 |
1,324 |
6080 |
990 |
220 |
1760 |
|
|
62-10-8 |
1,346 |
6180 |
990 |
220 |
1790 |
|
|
63-10-8 |
1,368 |
6280 |
990 |
220 |
1825 |
|
|
64-10-8 |
1,39 |
6380 |
990 |
220 |
1860 |
|
|
66-10-8 |
1,433 |
6580 |
990 |
220 |
2060 |
|
|
67-10-8 |
1,455 |
6680 |
990 |
220 |
2090 |
|
|
68-10-8 |
1,477 |
6780 |
990 |
220 |
2120 |
|
|
70-10-8 |
1,52 |
6980 |
990 |
220 |
2180 |
|
|
71-10-8 |
1,542 |
7080 |
990 |
220 |
2210 |
|
|
72-10-8 |
1,564 |
7180 |
990 |
220 |
2250 |
|
|
80-10-8 |
1,738 |
7980 |
990 |
220 |
2360 |
|
|
87-10-8 |
1,891 |
8680 |
990 |
220 |
2560 |
|
|
90-10-8 |
1,956 |
8980 |
990 |
220 |
2620 |
|
|
пустотного настила серия 1.141-1 в.60 с доп. НК-3-18 |
1 ПК 18-12-8 |
0,466 |
1780 |
1190 |
220 |
665 |
|
20-12-8 |
0,518 |
1980 |
1190 |
220 |
725 |
|
|
21-12-8 |
0,545 |
2080 |
1190 |
220 |
765 |
|
|
22-12-8 |
0,571 |
2180 |
1190 |
220 |
800 |
|
|
24-12-8 |
0,623 |
2380 |
1190 |
220 |
867 |
|
|
25-12-8 |
0,649 |
2480 |
1190 |
220 |
905 |
|
|
26-12-8 |
0,675 |
2580 |
1190 |
220 |
940 |
|
|
27-12-8 |
0,713 |
2680 |
1190 |
220 |
970 |
|
|
28-12-8 |
0,728 |
2780 |
1190 |
220 |
1010 |
|
|
30-12-8 |
0,78 |
2980 |
1190 |
220 |
1080 |
|
|
31-12-8 |
0,806 |
3080 |
1190 |
220 |
1115 |
|
|
32-12-8 |
0,833 |
3180 |
1190 |
220 |
1150 |
|
|
33-12-8 |
0,859 |
3280 |
1190 |
220 |
1190 |
|
|
34-12-8 |
0,885 |
3380 |
1190 |
220 |
1220 |
|
|
35-12-8 |
0,911 |
3480 |
1190 |
220 |
1250 |
|
|
36-12-8 |
0,937 |
3580 |
1190 |
220 |
1280 |
|
|
37-12-8 |
0,963 |
3680 |
1190 |
220 |
1315 |
|
|
1 ПК38-12- |
0,99 |
3780 |
1190 |
220 |
1350 |
|
|
39-12-8 |
1,016 |
3880 |
1190 |
220 |
1385 |
|
|
40-12-8 |
1,042 |
3980 |
1190 |
220 |
1420 |
|
|
42-12-8 |
1,096 |
4180 |
1190 |
220 |
1490 |
|
|
43-12-8 |
1,121 |
4280 |
1190 |
220 |
1530 |
|
|
44-12-8 |
1,147 |
4380 |
1190 |
220 |
1565 |
|
|
45-12-8 |
1,173 |
4480 |
1190 |
220 |
1600 |
|
|
46-12-8 |
1,199 |
4580 |
1190 |
220 |
1635 |
|
|
47-12-8 |
1,23 |
4680 |
1190 |
220 |
1660 |
|
|
48-12-8 |
1,26 |
4780 |
1190 |
220 |
1700 |
|
|
1.141-1, в.63 |
49-12-8 |
1,28 |
4880 |
1190 |
220 |
1740 |
|
50-12-8 |
1,304 |
4980 |
1190 |
220 |
1770 |
|
|
51-12-8 |
1,34 |
5080 |
1190 |
220 |
1800 |
|
|
52-12-8 |
1,356 |
5180 |
1190 |
220 |
1830 |
|
|
53-12-8 |
1,38 |
5280 |
1190 |
220 |
1860 |
|
|
54-12-8 |
1,408 |
5380 |
1190 |
220 |
1900 |
|
|
56-12-8 |
1,461 |
5580 |
1190 |
220 |
1970 |
|
|
57-12-8 |
1,487 |
5680 |
1190 |
220 |
2000 |
|
|
58-12-8 |
1,513 |
5789 |
1190 |
220 |
2030 |
|
|
59-12-8 |
1,539 |
5880 |
1190 |
220 |
2065 |
|
|
60-12-8 |
1,566 |
5980 |
1190 |
220 |
2100 |
|
|
62-12-8 |
1,618 |
6180 |
1190 |
220 |
2170 |
|
|
63-12-8 |
1,644 |
6280 |
1190 |
220 |
2200 |
|
|
серия 1.241.1 вып. 27 |
64-12-8 |
1,67 |
6380 |
1190 |
220 |
2240 |
|
65-12-8 |
1,696 |
6480 |
1190 |
220 |
2275 |
|
|
66-12-8 |
1,72 |
6580 |
1190 |
220 |
2310 |
|
|
67-12-8 |
1,749 |
6680 |
1190 |
220 |
2350 |
|
|
68-12-8 |
1,775 |
6780 |
1190 |
220 |
2385 |
|
|
70-12-8 |
1,827 |
6980 |
1190 |
220 |
2460 |
|
|
71-12-8 |
1,854 |
7080 |
1190 |
220 |
2495 |
|
|
72-12-8 |
1,88 |
7180 |
1190 |
220 |
2530 |
|
|
с.1.241-1.39 |
78-12-8 |
2,037 |
7780 |
1190 |
220 |
2750 |
|
80-12-8 |
2,09 |
7980 |
1190 |
220 |
2820 |
|
|
87-12-8 |
2,272 |
8680 |
1190 |
220 |
3060 |
|
|
90-12-8 |
2,351 |
8980 |
1190 |
220 |
3170 |
|
|
серия 1.141-1, в 60 с доп. НК - 3 - 40 |
1 ПК16-15-8 |
0,518 |
1580 |
1490 |
220 |
785 |
|
18-15-8 |
0,583 |
1780 |
1490 |
220 |
855 |
|
|
24-15-8 |
0,78 |
2380 |
1490 |
220 |
1145 |
|
|
26-15-8 |
0,846 |
2580 |
1490 |
220 |
1235 |
|
|
27-15-8 |
0,878 |
2680 |
1490 |
220 |
1280 |
|
|
28-15-8 |
0,911 |
2780 |
1490 |
220 |
1330 |
|
|
29-15-8 |
0,944 |
2880 |
1490 |
220 |
1380 |
|
|
серия 1.141-1 |
30-15-8 |
0,977 |
2980 |
1490 |
220 |
1425 |
|
31-15-8 |
1,01 |
3080 |
1490 |
220 |
1475 |
|
|
32-15-8 |
1,042 |
3180 |
1490 |
220 |
1520 |
|
|
33-15-8 |
1,075 |
3280 |
1490 |
220 |
1565 |
|
|
34-15-8 |
1,108 |
3380 |
1490 |
220 |
1610 |
|
|
35-15-8 |
1,141 |
3480 |
1490 |
220 |
1655 |
|
|
36-15-8 |
1,174 |
3580 |
1490 |
220 |
1700 |
|
|
1ПК37-15-8 |
1,206 |
3680 |
1490 |
220 |
1745 |
|
|
38-15-8 |
1,239 |
3780 |
1490 |
220 |
1790 |
|
|
39-15-8 |
1,272 |
3880 |
1490 |
220 |
1835 |
|
|
40-15-8 |
1,305 |
3980 |
1490 |
220 |
1880 |
|
|
41-15-8 |
1,337 |
4080 |
1490 |
220 |
1920 |
|
|
42-15-8 |
1,37 |
4180 |
1490 |
220 |
1970 |
|
|
43-15-8 |
1,403 |
4280 |
1490 |
220 |
2020 |
|
|
44-15-8 |
1,436 |
4380 |
1490 |
220 |
2065 |
|
|
45-15-8 |
1,469 |
4480 |
1490 |
220 |
2110 |
|
|
46-15-8 |
1,5 |
4580 |
1490 |
220 |
2155 |
|
|
47-15-8 |
1,534 |
4680 |
1490 |
220 |
2200 |
|
|
48-15-8 |
1,567 |
4780 |
1490 |
220 |
2250 |
|
|
с. 1.141-1, в. 63 |
49-15-8 |
1,6 |
4880 |
1490 |
220 |
2300 |
|
50-15-8 |
1,632 |
4980 |
1490 |
220 |
2350 |
|
|
51-15-8 |
1,67 |
5080 |
1490 |
220 |
2400 |
|
|
52-15-8 |
1,698 |
5180 |
1490 |
220 |
2440 |
|
|
53-15-8 |
1,73 |
5280 |
1490 |
220 |
2480 |
|
|
54-15-8 |
1,76 |
5380 |
1490 |
220 |
2525 |
|
|
56-15-8 |
1,83 |
5580 |
1490 |
220 |
2625 |
|
|
57-15-8 |
1,86 |
5680 |
1490 |
220 |
2675 |
|
|
58-15-8 |
1,895 |
5780 |
1490 |
220 |
2700 |
|
|
59-15-8 |
1,928 |
5880 |
1490 |
220 |
2750 |
|
|
60-15-8 |
1,96 |
5980 |
1490 |
220 |
2800 |
|
|
61-15-8 |
1,993 |
6080 |
1490 |
220 |
2850 |
|
|
62-15-8 |
2,026 |
6180 |
1490 |
220 |
2900 |
|
|
63-15-8 |
2,059 |
6280 |
1490 |
220 |
2950 |
|
|
С. 1.241-1, В.27 |
64-15-8 |
2,091 |
6380 |
1490 |
220 |
2995 |
|
65-15-8 |
2,124 |
6480 |
1490 |
220 |
3070 |
|
|
66-15-8 |
2,157 |
6580 |
1490 |
220 |
3120 |
|
|
67-15-8 |
2,19 |
6680 |
1490 |
220 |
3170 |
|
|
68-15-8 |
2,222 |
6780 |
1490 |
220 |
3215 |
|
|
70-15-8 |
2,288 |
6980 |
1490 |
220 |
3310 |
|
|
71-15-8 |
2,321 |
7080 |
1490 |
220 |
3360 |
|
|
72-15-8 |
2,35 |
7180 |
1490 |
220 |
3400 |
|
|
73-15-8 |
2,386 |
7280 |
1490 |
220 |
3450 |
|
|
74-15-8 |
2,419 |
7380 |
1490 |
220 |
3490 |
|
|
75-15-8 |
2,452 |
7480 |
1490 |
220 |
3540 |
|
|
серия 1.141-1 в.60 с доп. Н Ж 3-467 |
1 ПК34-8-12,5 |
0,587 |
3380 |
790 |
220 |
815 |
|
37-8-12,5 |
0,64 |
3680 |
790 |
220 |
885 |
|
|
с.1.241-1,в.27 с доп.Н Ж 3-474 |
66-8-12,5 |
1,144 |
6580 |
790 |
220 |
1550 |
|
70-8-12,5 |
1,213 |
6980 |
790 |
220 |
1640 |
|
|
71-8-12,5 |
1,231 |
7080 |
790 |
220 |
1665 |
|
|
72-8-12,5 |
1,248 |
7180 |
790 |
220 |
1685 |
|
|
Плиты пустотного настила серия 1.241.1, в. 27 |
1ПК51-10-12,5 |
1,106 |
5080 |
990 |
220 |
1475 |
|
52-10-12,5 |
1,128 |
5180 |
990 |
220 |
1505 |
|
|
54-10-12,5 |
1,172 |
5380 |
990 |
220 |
1575 |
|
|
60-10-12,5 |
1,3 |
5980 |
990 |
220 |
1725 |
|
|
63-10-12,5 |
1,368 |
6280 |
990 |
220 |
1825 |
|
|
64-10-12,5 |
1,39 |
6380 |
990 |
220 |
1860 |
|
|
1ПК65-10-12,5 |
1,411 |
6480 |
990 |
220 |
1890 |
|
|
70-10-12,5 |
1,52 |
6980 |
990 |
220 |
2180 |
|
|
72-10-12,5 |
1,564 |
7180 |
990 |
220 |
2250 |
|
|
Плиты пустотного настила серия 1.141-1 |
1ПК30-12-12,5 |
0,78 |
2980 |
1190 |
220 |
1080 |
|
36-12-12,5 |
0,937 |
3580 |
1190 |
220 |
1280 |
|
|
37-12-12,5 |
0,963 |
3680 |
1190 |
220 |
1315 |
|
|
40-12-12,5 |
1,042 |
3980 |
1190 |
220 |
1420 |
|
|
42-12-12,5 |
1,096 |
4180 |
1190 |
220 |
1490 |
|
|
48-12-12,5 |
1,26 |
4780 |
1190 |
220 |
1700 |
|
|
Плиты пустотного настила С 1.141-1 ,В.63 с доп. Н Ж 3-430 |
51-12-12,5 |
1,34 |
5080 |
1190 |
220 |
1800 |
|
54-12-12,5 |
1,408 |
5380 |
1190 |
220 |
1900 |
|
|
56-12-12,5 |
1,461 |
5580 |
1190 |
220 |
1970 |
|
|
57-12-12,5 |
1,487 |
5680 |
1190 |
220 |
2000 |
|
|
58-12-12,5 |
1,51 |
5780 |
1190 |
220 |
2030 |
|
|
60-12-12,5 |
1,566 |
5980 |
1190 |
220 |
2100 |
|
|
63-12-12,5 |
1,644 |
6280 |
1190 |
220 |
2200 |
|
|
сер. 1.241.1 НЖ 3-436 |
64-12-12,5 |
1,67 |
6380 |
1190 |
220 |
2240 |
|
65-12-12,5 |
1,696 |
6480 |
1190 |
220 |
2275 |
|
|
70-12-12,5 |
1,827 |
6980 |
1190 |
220 |
2460 |
|
|
71-12-12,5 |
1,854 |
7080 |
1190 |
220 |
2495 |
|
|
72-12-12,5 |
1,88 |
7180 |
1190 |
220 |
2530 |
|
|
C.1.141-1,вып.60 с доп.Н Ж 3-439 |
1ПК37-15-12,5 |
1,206 |
3680 |
1490 |
220 |
1745 |
|
40-15-12,5 |
1,305 |
3980 |
1490 |
220 |
1880 |
|
|
42-15-12,5 |
1,37 |
4180 |
1490 |
220 |
1970 |
|
|
46-15-12,5 |
1,501 |
4580 |
1490 |
220 |
2155 |
|
|
48-15-12,5 |
1,57 |
4780 |
1490 |
220 |
2250 |
|
|
С.1.141-1, вып.63 с доп. Н Ж 3-436 |
51-15-12,5 |
1,67 |
5080 |
1490 |
220 |
2400 |
|
56-15-12,5 |
1,83 |
5580 |
1490 |
220 |
2625 |
|
|
58-15-12,5 |
1,895 |
5780 |
1490 |
220 |
2700 |
|
|
60-15-12,5 |
1,96 |
5980 |
1490 |
220 |
2800 |
|
|
63-15-12,5 |
2,059 |
6280 |
1490 |
220 |
2950 |
|
|
С.1.241-1, вып.27 |
72-15-12,5 |
2,354 |
7180 |
1490 |
220 |
3400 |
